    产品展示

    拉铆51漫画APP下载最新版

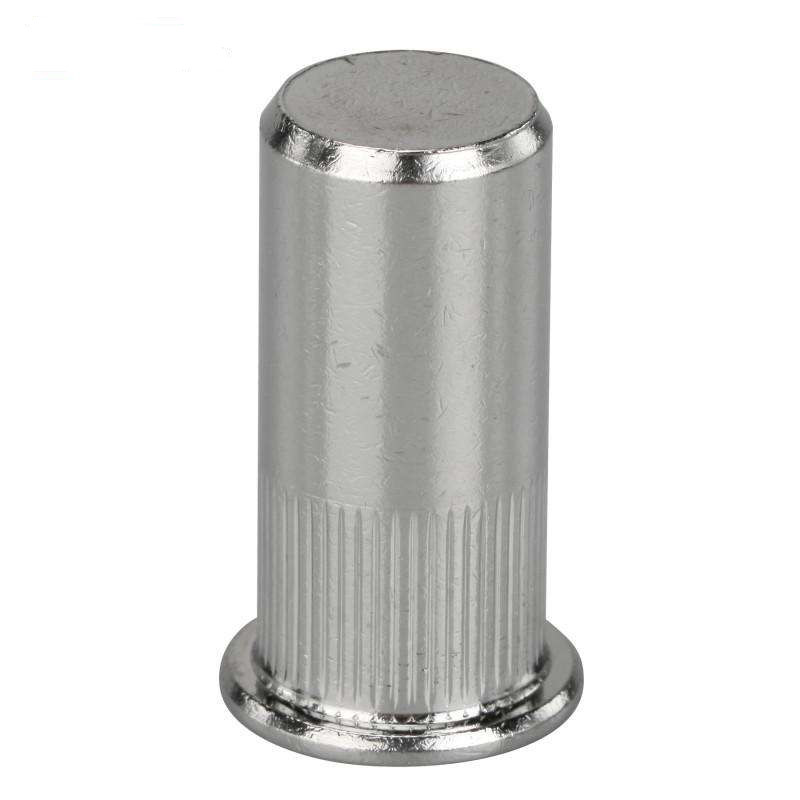

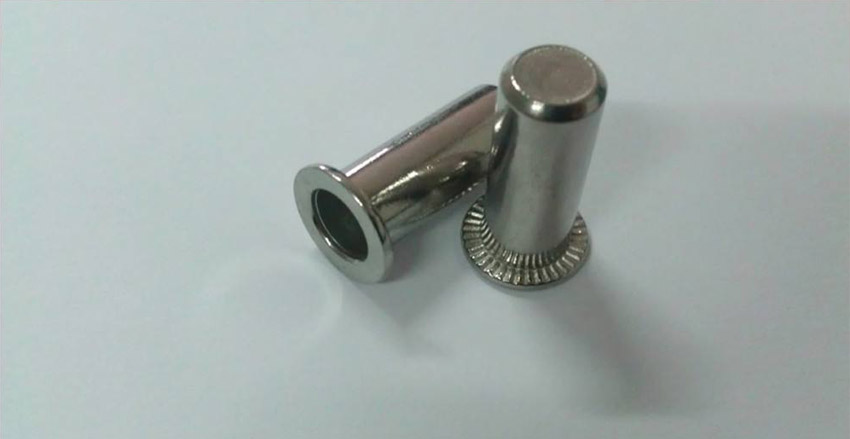

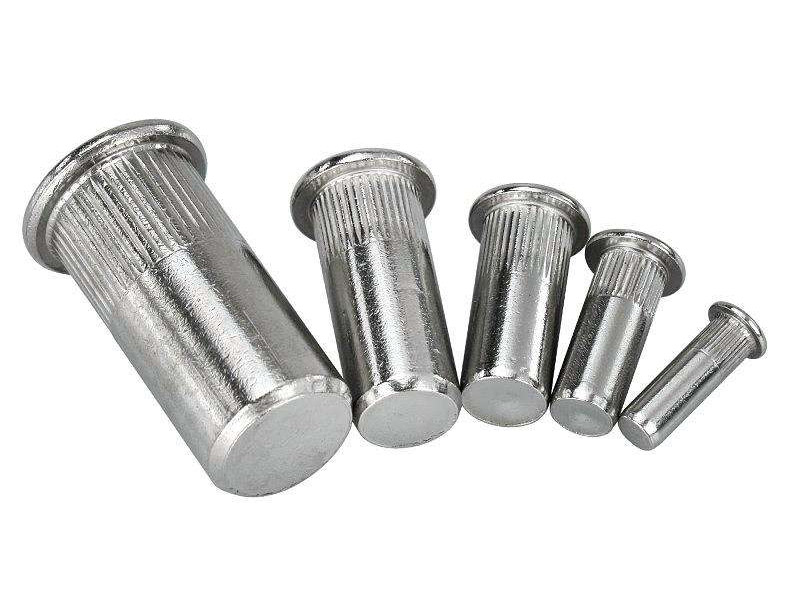

    平头竖纹盲孔铆51漫画APP下载最新版

    材质:304不锈钢、316不锈钢、碳钢、铝合金、铜 单位:mm 螺纹规格Thread Size产品编号Part Number钻孔直径Open End（通孔）Closed End（盲孔）(H)Grip Range（铆接钣厚）d0＋0.05d(max)Dk±0.3K±0.2L ±0.30d(max)Dk±0.3K&pl
    品牌：51漫画APP下载安装免费 S.F 表面处理：多种
    产品详情



    材质:304不锈钢、316不锈钢、碳钢、铝合金、铜   单位:mm

    螺纹规格Thread Size
    产品编号
    Part Number
    钻孔直径
    Open End（通孔）
    Closed End（盲孔）
    (H)Grip Range
    （铆接钣厚）
    d0
    ＋0.05
    d(max)
    Dk±0.3
    K±0.2
    L ±0.30
    d(max)
    Dk±0.3
    K±0.2
    L ±0.30
    -0.00
    M3*0.5 BF/BK30508.5-2 5.0 5.0 7.0 0.8 8.5 5.0 7.0 0.8 16 0.5-2.0
    M4*0.7 BF/BK40611-2.5 6.0 6.0 9.0 0.8 11 6.0 9.0 0.8 17 0.5-2.5
    M5*0.8 BF/BK50713-3 7.0 7.0 10.0 1.0 13 7.0 10.0 1.0 19 0.5-3.0
    M6*1.0 BF/BK60915-3 9.0 9.0 12.0 1.3 15 9.0 12.0 1.3 22 0.5-3.0
    M6*1.0 BK61015-3 10.0 10.0 12.6 1.0 15 10.0 12.6 1.0 22 0.5-3.0
    M8*1.25 BF/BK81118-4 11.0 11.0 14.5 1.5 18 11.0 14.5 1.5 28 0.5-4.0
    M10*1.5 BF/BK101321-5 13.0 13.0 16.5 1.8 21 13.0 16.5 1.8 30 0.5-5.0
    M12*1.75 BF/BK121524-6 15.0 15.0 18.0 1.8 24 15.0 18.0 1.8 36 0.5-6.0
    M12*1.75 BF/BK121627-8 16.0 16.0 23.0 2.0 27 16.0 23.0 2.0 40 0.5-8.0
    备注:可根据客户需要生产本规格表以外尺寸及特殊形状的拉帽。

    Material:304Stainless steel 、316Stainless steel、Carbon steel、Aluminum、Brass   UINT:inch
    螺纹规格Thread Size
    产品编号
    Part Number
    钻孔直径
    Open End（通孔）
    Closed End（盲孔）
    (H)Grip Range
    （铆接钣厚）
    d0
    ＋.002
    d(max)
    Dk±.012
    K±.008
    L±.019
    d(max)
    Dk±.012
    K±.008
    L±.012
    -.00
    6-32UNC BF/BK632059-2 .197 .197 .276 .031 .354 .197 .276 .031 .636 .020-.098
    8-32UNC BF/BK8320611-2.5 .236 .236 .354 .031 .433 .236 .354 .031 .669 .020-.098
    10-24UNC BF/BK10240713-3 .276 .276 .394 .039 .512 .276 .394 .039 .748 .020-.118
    1/4-20UNC BF14200915-3 .354 .354 .472 .051 .591 .354 .472 .051 .866 .020-.118
    1/4-20UNC BK14201015-3 .394 .394 .496 .039 .591 .394 .472 .039 .866 .020-.118
    5/16-18UNC BF5161318-4 .433 .433 .590 .039 .709 .433 .590 .039 1.102 .020-.157
    5/16-18UNC BK51613.518-4 .531 .531 .670 .039 .709 .531 .590 .039 1.181 .020-.157
    3/8-16UNC BF381321-5 .512 .512 .650 .039 .827 .512 .650 .039 1.102 .020-.197
    3/8-16UNC BK/3813.518-3 .531 .531 .670 .039 .827 .531 .650 .039 1.181 .020-.118
    1/2-13UNC BF/BK12131524-6 .591 .591 .709 .071 .945 .591 .709 .071 1.417 .020-.236
    1/2-13UNC BF/BK12131627-8 .630 .630 .906 .078 1.063 .630 .906 .078 1.575 .020-.315

    Note:We can produce other size and special shape insert nuts according to the customers'requests outside this table.
